Figure 8

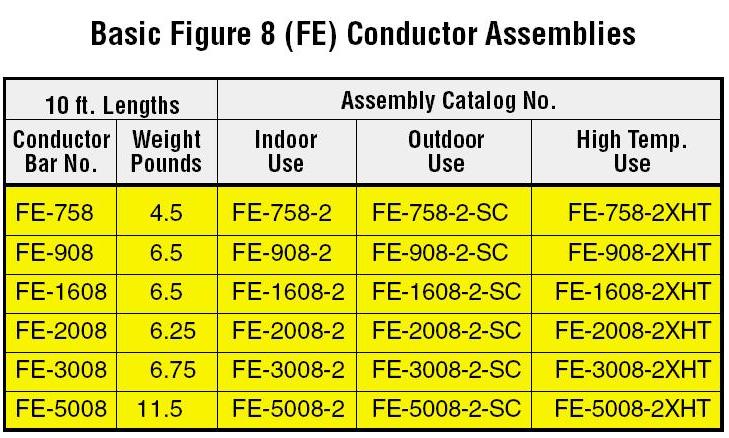

Figure 8 Conductor Bars are furnished as assemblies consisting of a ten-foot long conductor bar rated at 600 volts, an insulation cover, splice cover, and connector pins or joint clamps as applicable.
The insulating cover must be appropriate for the environment - indoor outdoor, or high temperature - in which the conductor is to operate.
Indoor systems are for use in ambient temperatures up to 160 degrees F. They have an Orange PVC Insulating Cover. They are not recommended for outdoor use in direct sunlight. . .
|
